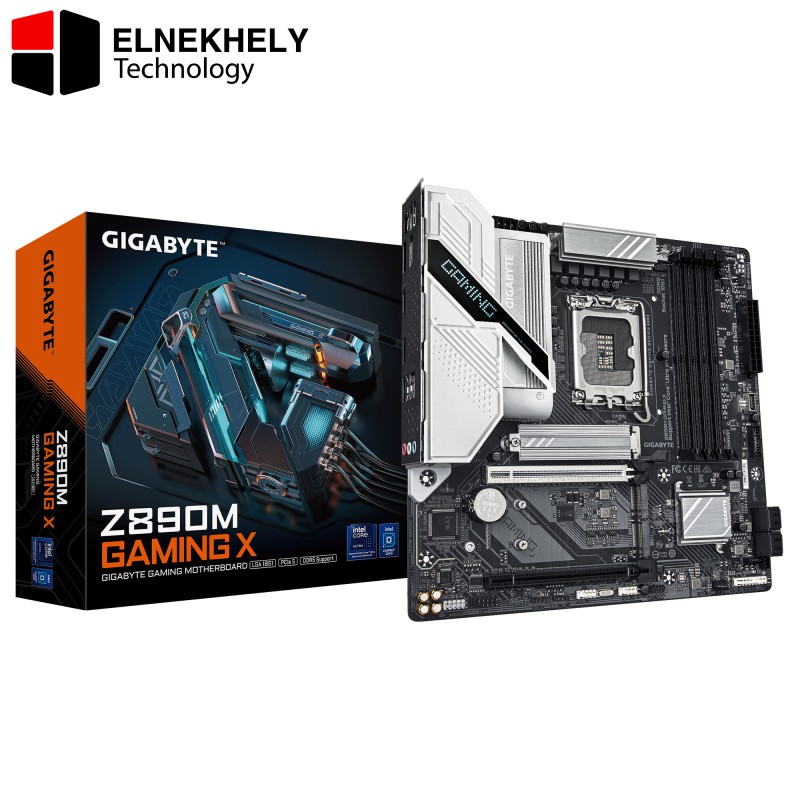

GIGABYTE Z890M Gaming X Ultra Core (Series 2) LGA 1851, mATX, DDR5, 3X M.2, PCIe 5.0, Front USB Type-C, 2.5GbE LAN, EZ-Latch

GIGABYTE Z890 Micro-ATX Motherboard Specifications
CPU Support:

• LGA1851 Socket for Intel® Core™ Ultra Processors.

• L3 cache varies by CPU.

Chipset:

• Intel® Z890 Express Chipset.

Memory (RAM):

• Supports DDR5 up to 9066MT/s (OC).

• 4 DIMM slots, up to 256GB total.

• Supports ECC (non-ECC mode) and XMP.

Integrated Graphics:

• HDMI 2.1: Up to 4096x2160@60Hz.

• DisplayPort 2.1 (x2): Up to 4096x2304@60Hz.

• Supports triple-display output.

Audio:

• Realtek HD Audio CODEC with 7.1-channel support.

Networking:

• Realtek 2.5GbE LAN.

Expansion Slots:

• PCIe 5.0 x16 slot (CPU) for GPU or NVMe SSD.

• PCIe 4.0 x4 slot (Chipset).

Storage:

• 3x M.2 Slots:

• 1x PCIe 5.0 x4 (CPU).

• 2x PCIe 4.0 x4 (Chipset).

• 4x SATA 6Gb/s Ports.

• Supports RAID 0, 1, 5, 10.

USB Ports:

• USB 3.2 Gen 1: 5 ports (3 rear, 2 internal).

• USB 2.0: 6 ports (2 rear, 4 internal).

• USB Type-C® (Gen 1).

Internal Connectors:

• Fan & Water Cooling Headers.

• RGB & ARGB Headers.

• Thunderbolt™ add-in card connectors.

Operating System Support:

• Windows 11/10 64-bit.

Form Factor:

• Micro-ATX (24.4cm × 24.4cm).
