ASUS ROG Strix B850-I Gaming WiFi AMD AM5 B850 Mini-ITX mITX Motherboard 10+2+1 Stages, DDR5, 2.5G LAN, WiFi 7, 2X M.2, PCIe® 5.0 x16, USB 20Gbps Type-C®, AI Overclocking, AI Networking II, Aura Sync

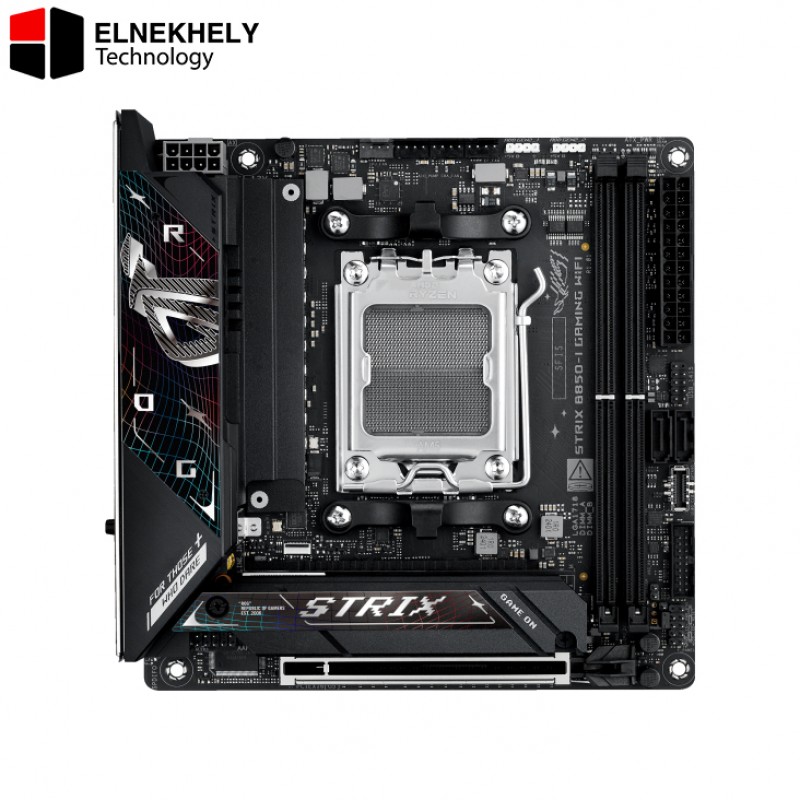

ROG STRIX B850-I GAMING WIFI

• CPU Support:
  AMD Socket AM5, compatible with Ryzen™ 9000, 8000, and 7000 series desktop processors.

• Chipset:
  AMD B850

• Memory:

  • 2 x DDR5 DIMM slots, up to 128GB

  • Supports speeds up to 8400+ MT/s (OC)

  • ECC/Non-ECC un-buffered DIMMs

  • Dual-channel, AMD EXPO & ASUS AEMP profiles supported

• Graphics Output:

  • 1 x HDMI 2.1 (4K@60Hz)

  • 1 x USB-C with DisplayPort Alt mode (4K@60Hz)


• Expansion Slots:

  • Ryzen 9000/7000: 1 x PCIe 5.0 x16

  • Ryzen 8000: 1 x PCIe 4.0 x16

• Storage:

  • 2 x M.2 slots (PCIe 5.0/4.0 depending on CPU)

  • 2 x SATA 6Gb/s ports

• Networking:

  • Intel® 2.5Gb Ethernet with ASUS LANGuard

  • Wi-Fi 7 (2.9Gbps), supports 2.4/5/6GHz

  • Bluetooth® 5.4

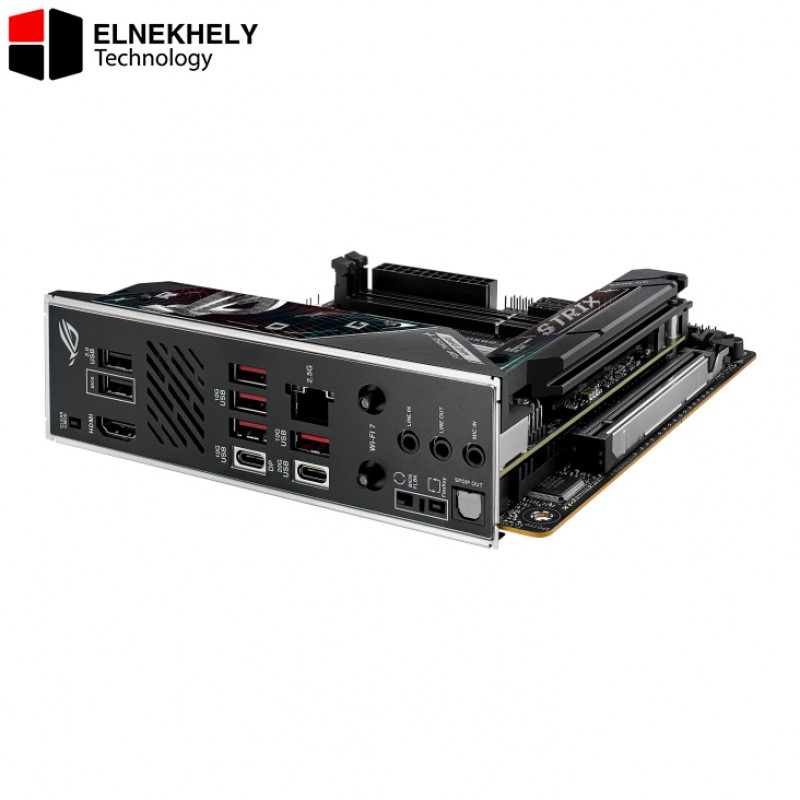

• USB Ports:

  • Rear: 1 x USB 20Gbps (Type-C), 5 x USB 10Gbps, 2 x USB 2.0

  • Front: 1 x USB 10Gbps, additional headers for more USB ports

• Audio:

  • ROG SupremeFX 7.1 Surround Sound (ALC4080 codec)

  • High-res audio (32-bit/384kHz), optical S/PDIF out, premium audio components

• Special Features:

  • ASUS Q-Design: Easy-install features like Q-Latch, Q-Release

  • Cooling: M.2 heatsinks, multiple fan headers

  • Aura Sync RGB, addressable Gen 2 headers

  • DIY friendly: Pre-mounted I/O shield, BIOS FlashBack, Clear CMOS button

• Software:

  • ROG CPU-Z, Armoury Crate, Aura Creator, Fan Xpert 4

  • Dolby Atmos, Norton 360 (60-day trial), Adobe Creative Cloud (trial), WinRAR (40-day trial)

• BIOS:

  • 256 Mb UEFI AMI BIOS

  • EZ Flash 3, CrashFree BIOS 3, UEFI EZ Mode

• Accessories Included:

  • SATA cables, Wi-Fi Q-Antenna, ROG stickers, keychain, cable ties, quick start guide

• Form Factor:

  • Mini-ITX (17 cm x 17 cm)

• OS Support:

  • Windows 11
